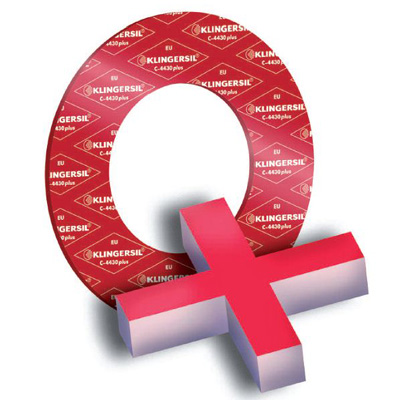

KLINGERSIL C-4430+

KLINGERSIL C-4430+

KLINGERSIL C-4430+

Benefits / properties

  • Universal gasket for general use up to 250°C
  • Improved pressure stability
  • Very suitable for steam and hot water
  • Does not stick on the flange



Specification
Synthetic and fiberglass bound with NBR, 3xA self-release surfaces.



Dimensions, standard paper
Size: 1500 x 2000 mm
Thickness: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm
Tolerances: Thickness ± 10 %, Length ± 50 mm, Width ± 50 mm
Also comes delivered as rings in DIN, ANSI, and user-defined dimensions.

Technical Information

Download the KLINGER Expert app


File Name Download
KLINGER Expert 6.0 download Download
KLINGER Expert 6.0 Manual_E Download
KLINGER Expert 6.0 Manual_D Download
KLINGER Expert 5.2.1 Manual_E Download
Applications_parameters_Soft.pdf Download
Gasket_factors_Soft.pdf Download
Approvals
File Name Download
DVGW_C4430+ Download
ELASTOMERLEITLINIE_C4430+ Download
FIRE SAFE_C4430+ Download
TA-LUFT_C4430+ Download
W270_C4430+ Download
WRAS_C4430+ Download
